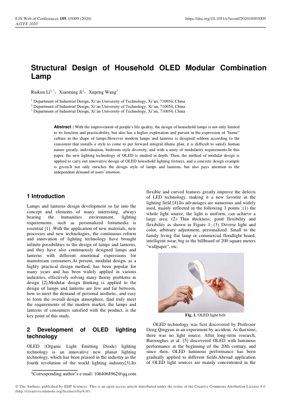

Structural Design of Household OLED Modular Combination Lamp: Analysis and Insights

1. Introduction

The design of household lighting has evolved beyond mere functionality. Modern consumers seek products that reflect personal aesthetics, contribute to a cohesive home ambiance, and offer emotional value. This paper identifies a critical gap in the market: the lack of lighting systems that allow for easy customization and stylistic unity across different rooms. It proposes addressing this gap by integrating Organic Light-Emitting Diode (OLED) technology with a modular design philosophy to create a versatile, user-centric lighting solution.

2. Development of OLED Lighting Technology

OLED represents a paradigm shift in lighting, often termed the "fourth revolution" in the industry. Unlike point-source LEDs, OLEDs are thin-film, area-light sources.

2.1. Technical Advantages of OLED

• Uniform Area Lighting: Emits soft, glare-free light across its entire surface, ideal for ambient illumination.
• Ultra-Thin and Flexible Form Factor: Enables designs impossible with rigid LEDs or traditional bulbs. Can be bent or curved, as shown in the referenced OLED light belt (Fig. 1).
• Color and Dimming Versatility: Offers wide color gamut and precise dimming control for creating dynamic moods.

2.2. Historical Context and Current Research

Following its accidental discovery and subsequent development in the late 20th century, OLED technology has matured primarily in the display sector (e.g., LG curved TVs, Samsung foldable phones). Major lighting corporations like Philips, GE, and Panasonic are actively researching OLED for illumination. However, the paper notes ongoing challenges in scaling up production volume and improving luminous efficacy compared to established LED technology.

3. Modular Design Methodology

Modular design involves creating a system from smaller, standardized, and interchangeable units (modules). This approach is applied to the lamp design to achieve:

• Customizability: Users can combine modules to create unique shapes and sizes.
• Scalability and Upgradability: The system can grow or change with user needs.
• Manufacturing Efficiency: Standardized parts simplify production and inventory.
• Sustainable Lifecycle: Individual modules can be replaced upon failure, reducing waste.

4. Proposed Design: Household OLED Modular Combination Lamp

The core proposal is a lamp system built from connectable OLED panels and structural frames.

4.1. Design Concept and User-Centric Approach

The design prioritizes emotional connection and personal expression. It moves away from a one-size-fits-all product to a toolkit that empowers users to co-create their lighting environment, aligning with the "home" culture mentioned in the abstract.

4.2. Structural Components and Assembly

The system comprises:

• OLED Light Modules: Panels of various shapes (square, triangle, hexagon) emitting light.
• Connector Frames: Mechanical pieces that physically and electrically link the modules.
• Base/Power Unit: Provides stable support and central power conversion/control.
• Control Interface: A simple app or physical dial for adjusting brightness and color temperature.

Assembly is envisioned as tool-free, using magnetic or simple mechanical snap-fit connections.

5. Technical Details and Analysis

5.1. Core Insight & Logical Flow

Core Insight: The paper's fundamental bet is that the future of premium home lighting isn't about smarter bulbs, but about architectural, user-configurable light surfaces. It correctly identifies OLED as the only current technology that can physically deliver on this vision of "light as a malleable material." The logical flow is sound: diagnose a market need (personalized, cohesive ambiance) → identify the enabling technology (OLED) → apply a proven design methodology (modularity) to bridge the gap. This is less about a radical new invention and more about a shrewd, systems-level integration of existing but underutilized concepts in a new domain.

5.2. Strengths & Critical Flaws

Strengths: The conceptual strength is undeniable. It aligns perfectly with macro-trends in consumer goods: mass customization, experiential products, and sustainable design (via repairability). The focus on emotional and cultural value, not just lumens-per-watt, is a mature design perspective often missing in engineering-led lighting research.

Critical Flaws: The paper is glaringly silent on the economics. OLED for lighting remains prohibitively expensive. A modular system, while elegant, adds further cost (connectors, control electronics) and complexity (potential connection reliability issues, power distribution across modules). The paper reads like a brilliant design thesis but lacks the gritty, cost-benefit analysis of a viable product roadmap. Furthermore, it underestimates the competition from advanced, flexible LED arrays which are closing the form-factor gap at a fraction of OLED's cost.

5.3. Actionable Insights & Recommendations

For this concept to move beyond academia:

1. Pivot to a Hybrid Model: Start with a high-margin, low-volume "designer edition" using true OLED to build brand prestige. Simultaneously, develop a mass-market version using the best available flexible LED tech, applying the same modular design language. This is the Tesla Roadster-to-Model S strategy.
2. Partner or Perish: The authors' institution must partner with a major OLED manufacturer (e.g., LG Chem, Konica Minolta) or a lighting giant (Signify/Philips) to access materials, manufacturing scale, and distribution channels. Going it alone is a non-starter.
3. Develop the "OS for Light": The real long-term value may not be in the hardware modules, but in the software platform that controls them—an iOS for your walls. Invest in an intuitive app with pre-set "ambiance scenes" (e.g., "Focus," "Relax," "Entertain") and community-driven design sharing.

6. Original Analysis: Bridging Technology and Human Experience

This research sits at a fascinating intersection of material science, industrial design, and behavioral psychology. Its primary contribution is conceptual: it re-frames the household lamp from a device into a design medium. This aligns with broader shifts in Human-Computer Interaction (HCI) towards "calm technology" and ambient intelligence, where the interface disappears into the environment. The proposed modular OLED system acts as a tangible user interface for controlling one's personal atmosphere.

However, the paper's technological optimism requires tempering. While OLED's potential is vast, its commercial journey in lighting has been slower than anticipated. According to a 2023 report from the U.S. Department of Energy, OLED efficacy for lighting applications, while improving, still lags behind that of high-performance LEDs, and costs remain orders of magnitude higher per lumen. The research would be strengthened by acknowledging this and positioning the modular design framework as technology-agnostic in the long run. The core innovation—the modular, user-assemblable system—could be the lasting contribution, with OLED simply being the first-generation light engine.

Furthermore, the design's success hinges on usability. The paper mentions user-centricity but does not detail user studies. Will non-technical users truly engage in complex configuration? Research from the MIT Media Lab on participatory design suggests that for such systems to succeed, the configuration process itself must be rewarding and intuitive, not a chore. The "IKEA effect"—where users value self-assembled products more—could be a powerful ally here, but only if the assembly is frustration-free.

In conclusion, this work is a compelling vision statement. It effectively argues that the next frontier in lighting is psychological and architectural, not just photometric. Its real-world impact will depend less on the specific choice of OLED and more on the execution of the modular ecosystem and its ability to navigate the harsh realities of cost, supply chains, and consumer adoption curves.

7. Technical Specifications and Mathematical Model

A simplified model for the luminous output of a modular assembly can be expressed. The total luminous flux ($\Phi_{total}$) of a configuration is the sum of its active modules, minus efficiency losses at connections:

$\Phi_{total} = \eta_{sys} \times \sum_{i=1}^{n} (A_i \times L_i)$

Where:
- $\eta_{sys}$ is the system efficiency factor (0 < $\eta_{sys}$ ≤ 1), accounting for driver losses and connection resistance.
- $n$ is the number of active light modules.
- $A_i$ is the light-emitting area of the i-th module (in m²).
- $L_i$ is the luminance of the i-th module (in lm/m² or cd/m²).

The power consumption ($P_{total}$) can be modeled as:
$P_{total} = \sum_{i=1}^{n} \frac{A_i \times L_i}{\eta_{OLED}}$
where $\eta_{OLED}$ is the luminous efficacy of the OLED panels (in lm/W).

8. Experimental Results and Prototype Description

Prototype Description: While the PDF does not detail a physical prototype, the described design implies a proof-of-concept would consist of several polygonal (e.g., hexagonal) OLED tiles. Each tile would have integrated edge connectors for power and data daisy-chaining. A central hub would provide a DC power supply (e.g., 24V) and a simple microcontroller for dimming control.

Expected/Implied Results:

• Uniformity: The assembled surface should demonstrate seamless, low-glare illumination without visible hot spots or dark lines at junctions, a key advantage over modular LED solutions.
• Flexibility & Form: Prototypes would validate the ability to create both flat and gently curved luminous surfaces.
• User Assembly Time: A key metric would be the time required for a novice user to assemble a predefined pattern, targeting under 5 minutes for a 9-module array.

Chart/Figure Explanation (Based on PDF References):
Fig. 1. OLED light belt: This figure would illustrate the thin, flexible nature of OLED technology, showing a strip that can be bent or curved, highlighting its core material advantage over rigid light sources.
Fig. 2. LG curved OLED TV: This reference figure is used to demonstrate the commercial maturity and aesthetic potential of curved OLED displays, serving as an analogy for the desired form factor in lighting.

9. Analysis Framework: A Non-Code Case Study

Case: Designing a Modular Lighting System for a Co-Working Space
Objective: Create adaptable zone lighting that can be reconfigured for different events (workshop, networking, presentation).
Framework Application:

1. Module Definition: Identify core units: 1) Task-light module (focused, brighter), 2) Ambient-wall module (soft, diffuse), 3) Accent-column module (vertical, colored).
2. Interface Standardization: Define a universal magnetic/electrical connector for all modules.
3. Configuration Library: Pre-design several layouts: "Theater" (ambient wall + accent columns at back), "Brainstorm" (task lights in circular clusters), "Gallery" (even ambient wash).
4. User Control Layer: Implement a simple tablet app where the manager selects a layout; the system guides staff on which modules to connect where.

10. Future Applications and Research Directions

• Healthcare and Well-being: Integration with circadian lighting systems, where modules automatically adjust color temperature throughout the day to support human biological rhythms. Research from the Lighting Research Center (LRC) at Rensselaer Polytechnic Institute provides strong evidence for the health benefits of such systems.
• Smart Building Skins: Scaling the concept to building facades, where modular OLED panels act as dynamic, energy-efficient cladding that can display information or adjust transparency.
• Wearable and Fashion Tech: Ultra-thin, flexible modules could be incorporated into clothing or accessories for expressive, functional lighting.
• Advanced Materials: Future research must focus on solution-processable OLEDs or Perovskite LEDs (PeLEDs), which promise lower cost and higher efficiency through printing techniques, as noted in recent literature in Nature Photonics.
• AI-Driven Design: Using generative AI tools to suggest optimal module configurations based on room scans, user preferences, and desired activities.

11. References

1. Norman, D. A. (2004). Emotional Design: Why We Love (or Hate) Everyday Things. Basic Books.
2. Ulrich, K. T., & Eppinger, S. D. (2015). Product Design and Development (6th ed.). McGraw-Hill. (For modular design methodology).
3. U.S. Department of Energy. (2023). Solid-State Lighting R&D Opportunities. Retrieved from [energy.gov].
4. Burroughes, J. H., et al. (1990). Light-emitting diodes based on conjugated polymers. Nature, 347, 539-541.
5. Forrest, S. R. (2004). The path to ubiquitous and low-cost organic electronic appliances on plastic. Nature, 428, 911-918.
6. Lighting Research Center (LRC), Rensselaer Polytechnic Institute. (2022). Circadian Light Research. [lrc.rpi.edu].
7. Zhu, H., et al. (2022). High-efficiency perovskite light-emitting diodes. Nature Photonics, 16, 237-244.
8. Norton, D., & Pine, J. B. (2011). The Experience Economy. Harvard Business Review Press. (For context on emotional/user-centric design).
